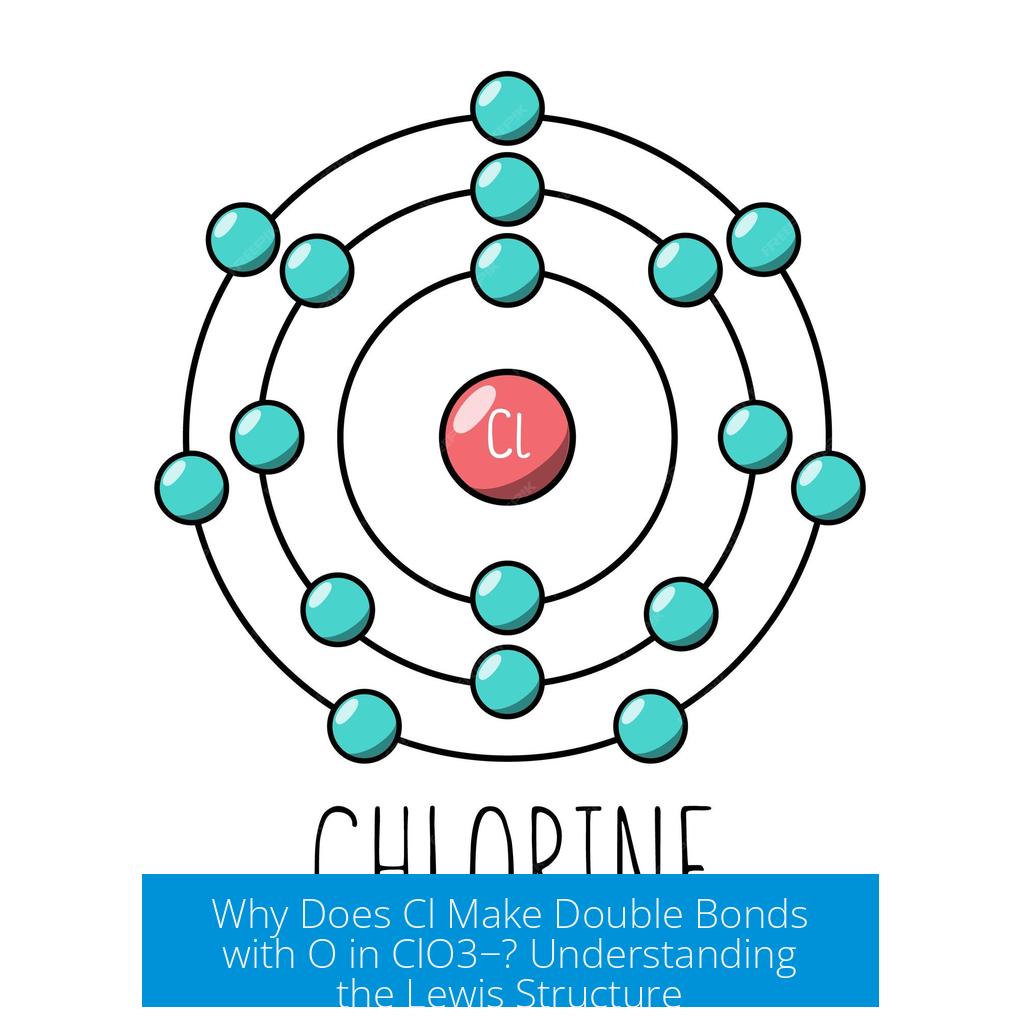

Why Does Cl Make Double Bonds with O in ClO3−? Understanding the Lewis Structure
Chlorine in chlorate ion (ClO3−) forms double bonds with oxygen atoms primarily to minimize formal charges and increase the stability of the molecule, as explained through the Lewis structure and formal charge calculations.

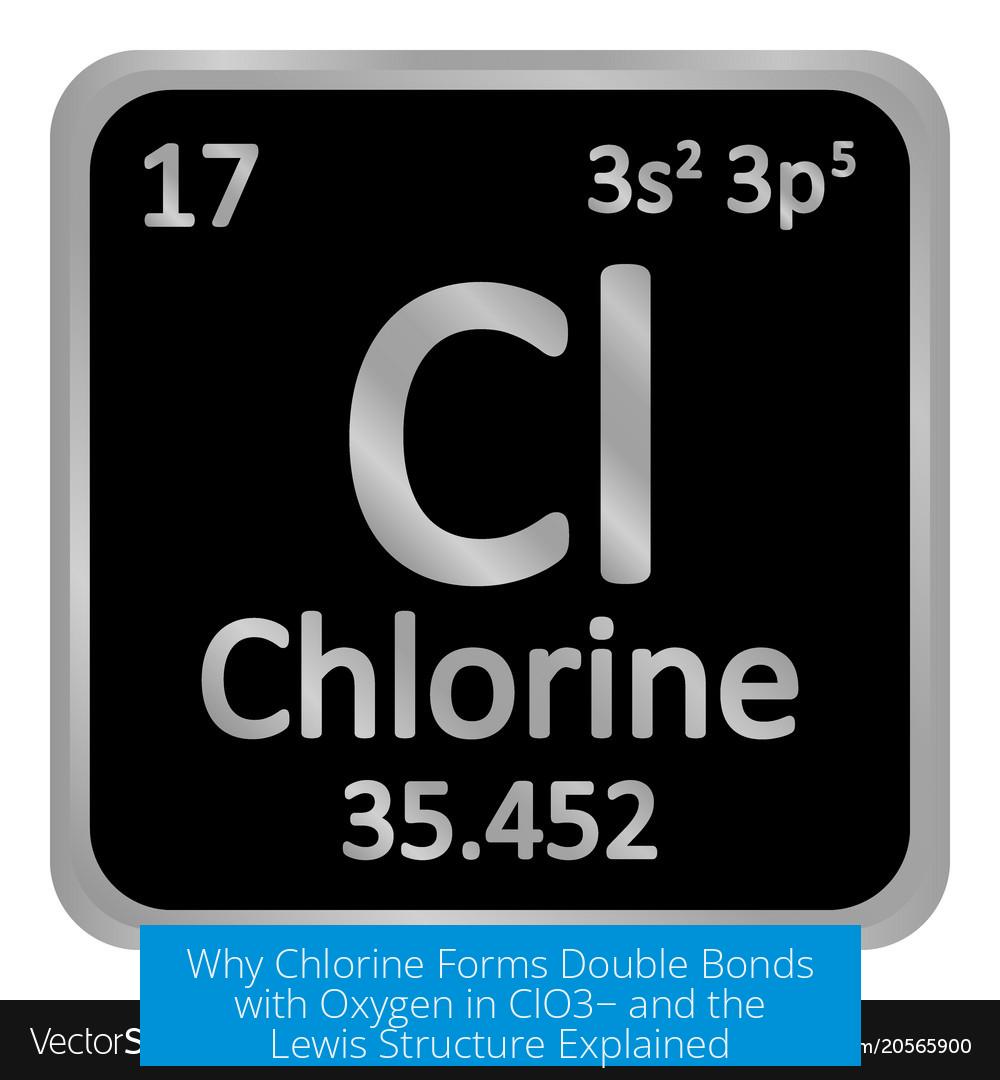

Understanding the Basics: Valence Electrons and Initial Structure
The chlorate ion contains chlorine (Cl) and three oxygen (O) atoms, with an overall charge of −1. First, count the total valence electrons:
- Chlorine (Group 17): 7 electrons
- Each oxygen (Group 16): 6 electrons × 3 = 18 electrons
- Extra electron due to the negative charge: +1 electron
Total valence electrons = 7 + 18 + 1 = 26 electrons.
An initial Lewis structure can be drawn where chlorine is bonded to three oxygens with only single bonds. In this arrangement, Cl uses one lone pair of electrons, and each oxygen has three lone pairs.
Initial Lewis Structure Properties
- Chlorine is the central atom.
- Three single bonds connect chlorine to oxygens.
- Lone pairs are located on oxygen atoms and chlorine as required to complete octets.
This structure is valid but does not represent the most stable resonance form, as formal charge considerations reveal.
Formal Charge: Definition and Its Role in Stability
Formal charge is a theoretical tool chemists use to assess the distribution of electrons in a molecule. It compares the number of valence electrons an atom owns when bonded in a molecule to its number of electrons as a free atom.
Formal charge is calculated using the formula:
Formal charge = (Number of valence electrons in free atom) − (Number of lone pair electrons) − 1⁄2(Number of bonding electrons)
Or more simply stated:
Formal charge = Group number − (Nonbonding electrons + Number of bonds)
Atoms in a Lewis structure tend to minimize formal charge values, ideally approaching zero. Structures with the least separation of charge are generally more stable.
Calculating Formal Charge for Initial Structure of ClO3−
Let us calculate the formal charges of chlorine and oxygen atoms in the initial single-bonded structure.
- Chlorine (Cl):
| Valence Electrons (Group 17) | 7 |
|---|---|
| Lone Pair Electrons | 2 (1 lone pair) |
| Bonds to Cl | 3 (each single bond counts as 1) |
Formal charge on Cl = 7 − (2 + 3) = 7 − 5 = +2
The positive formal charge of +2 on Cl suggests instability.
- Oxygen atoms each receive three lone pairs plus one bonding pair (shared with Cl), making their formal charges −1 or 0.
- But the overall molecule charge needs to sum to −1. Hence, charge compensation is necessary.
Why Form Double Bonds? Rerouting Electrons to Minimize Formal Charge
Adding more valence electrons to reduce the formal charge is not an option; total valence electrons are fixed at 26 due to the atoms and charge involved.
Instead, electrons are “rerouted” by converting single bonds to double bonds. This creates more bonding pairs around chlorine, reducing its formal charge.
- Two single bonds become double bonds between Cl and two of the oxygen atoms.
- These new double bonds share extra electron pairs previously counted as lone pairs on oxygens.
Recalculated Formal Charges in the Double Bonded Structure
| Atom | Lone Pair Electrons | Number of Bonds | Formal Charge Calculation | Resulting Formal Charge |
|---|---|---|---|---|
| Chlorine (Cl) | 2 (1 lone pair) | 5 (1 single + 2 double bonds) | 7 − (2 + 5) | 0 |
| Double bonded oxygen | 4 | 2 (double bond) | 6 − (4 + 2) | 0 |
| Single bonded oxygen | 6 | 1 (single bond) | 6 − (6 + 1) | −1 |
Chlorine’s formal charge drops from +2 to 0, which is more favorable. Double-bonded oxygens have zero formal charge. The one remaining single-bonded oxygen carries the −1 formal charge that balances the overall charge.
Stability and Resonance in ClO3− Structure
The resonance concept explains this structure’s stability further. The double bonds can shift among oxygen atoms, distributing the −1 formal charge over different oxygens across resonance structures.
- This delocalization lowers the energy and stabilizes the ion.
- The Lewis structure with two double bonds and one single bond best represents the resonance hybrid.
Key Points on the Lewis Structure of ClO3−
- The chlorate ion has 26 total valence electrons to allocate.
- Initial single-bond structures show high formal charge on chlorine (+2), which is unfavorable.
- Electrons cannot be added but can be shared through double bonds.
- Two single bonds convert to double bonds to reduce formal charge on chlorine to zero.
- Double bonded oxygens have formal charges of zero; the single bonded oxygen carries the negative charge.
- The resonance between these structures distributes the negative charge, increasing stability.
Analogy and Broader Context
A similar pattern appears in ions like sulfate (SO42−), where resonance and double bonds reduce formal charges and stabilize the molecule.
Formal charge is foundational for interpreting Lewis structures, guiding which bonds form to stabilize the molecule. It is a standard criterion in advanced chemistry education but sometimes overlooked in elementary courses.
Summary: How Lewis Structure Explains Double Bond Formation in ClO3−
- Cl forms double bonds with oxygen to minimize positive formal charge on itself.
- The overall electron count is fixed; electrons rearrange through bonding rather than adding.
- Double bonds reduce formal charges on Cl and oxygen atoms, achieving greater stability.
- Resonance distributes the negative charge, further stabilizing the ion.
Understanding formal charges and electron distribution clarifies the bonding patterns in chlorate ion and similar polyatomic ions.
