Understanding Plasmid Mapping

Understanding Plasmid Mapping

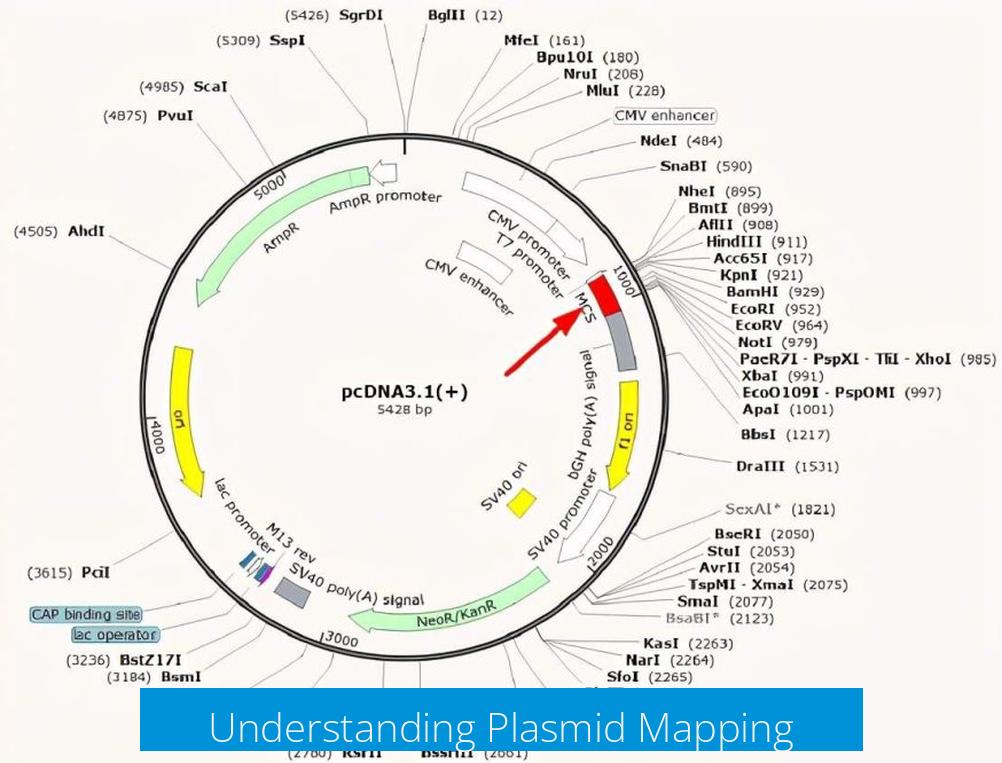

Plasmid mapping is the process of representing plasmid DNA elements on a circular diagram to visualize genes, origins of replication, and restriction sites. This visual tool helps researchers understand plasmid structure, plan cloning strategies, and analyze DNA sequences.

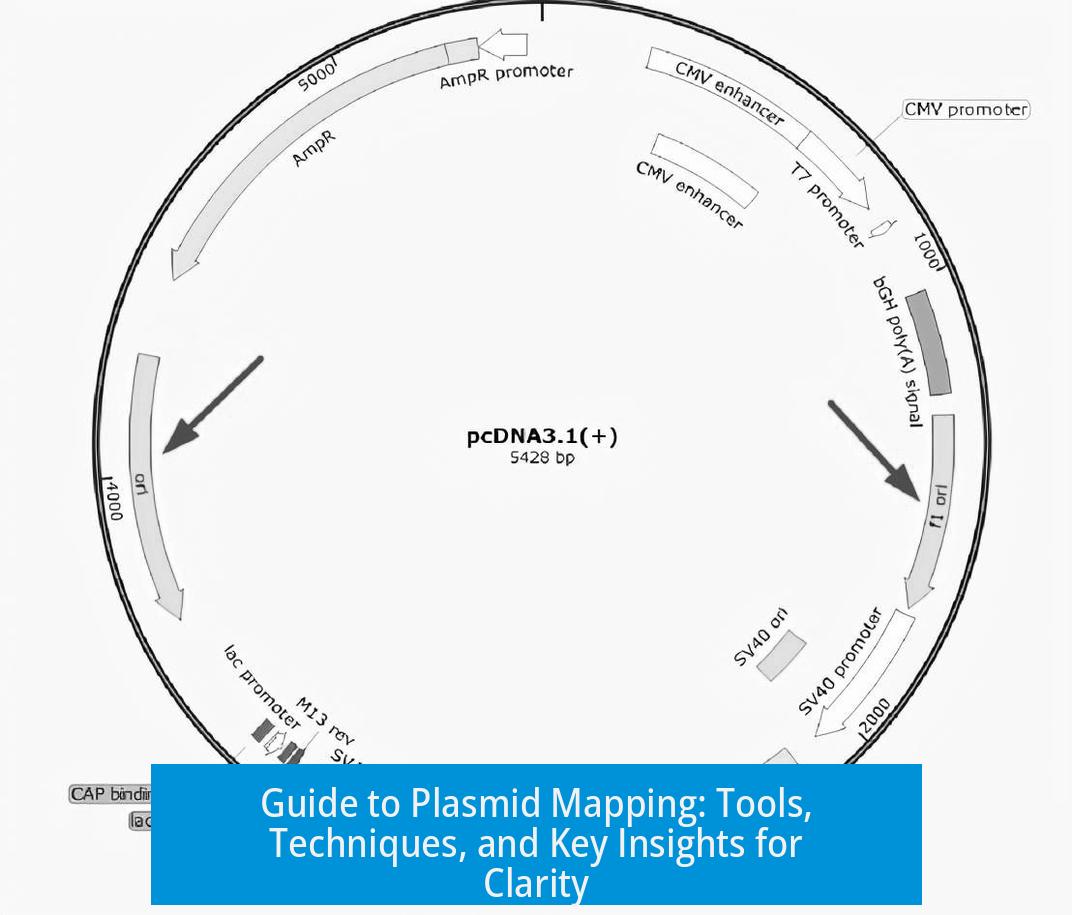

How to Draw a Plasmid Map

How to Draw a Plasmid Map

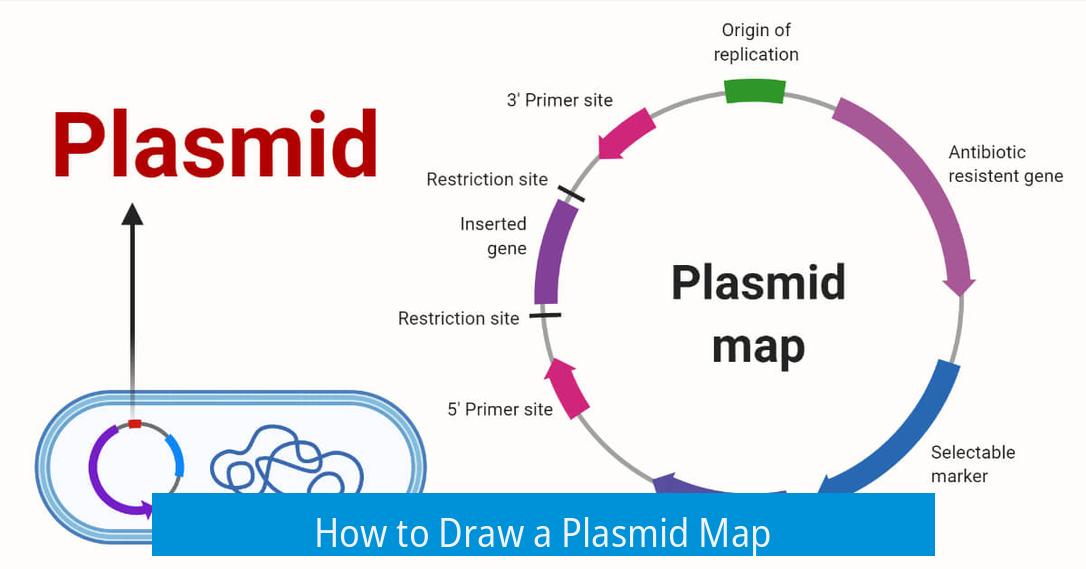

Since plasmids are circular DNA molecules, maps are best drawn as circles. Key elements, such as:

  • Resistance genes
  • Origin of replication (Ori)
  • Multiple cloning site (MCS)

are marked on this circular map at their relative positions. This layout aids interpretation and experimental planning.

Tools to Create and Analyze Plasmid Maps

Online Tool for Identifying Restriction Sites

Researchers often start by analyzing plasmid sequences for restriction enzyme sites. NEBcutter (http://nc2.neb.com/NEBcutter2/) is a free online tool that accepts DNA sequences and outputs restriction maps, showing cut sites for various enzymes.

Plasmid Mapping and Simulation Software

Software Type Features Cost
SnapGene Paid Draw plasmids, simulate digestions, visualize agarose gels Trial available; paid license
ApE (A Plasmid Editor) Freeware Construct and edit plasmid maps, analyze sequences Free
Benchling, CloneManager Mixed Cloud-based molecular biology suite for plasmid design and documentation Varies; some free tiers
MacVector Paid (MacOS) Advanced plasmid mapping, sequence analysis; lab licensing Paid

Additional Resources for Learning

Addgene offers extensive tutorials and explanations on plasmid basics and mapping techniques. Their topic page (Addgene Plasmids 101) helps clarify concepts and guides newcomers through cloning workflows.

Restriction Mapping

Restriction mapping involves digesting plasmids using specific enzymes and analyzing fragments to determine plasmid layouts. This method provides experimental verification for plasmid maps. Video tutorials, such as those by wcallanFBR on YouTube, offer practical insights into these lab techniques.

Key Takeaways

  • Plasmid maps visually depict circular DNA with annotated genes and origins.
  • Online tools like NEBcutter simplify restriction site analysis from sequences.
  • Software options vary from free (ApE) to paid (SnapGene, MacVector) based on user needs.
  • Addgene serves as a valuable learning and resource hub on plasmids and cloning.
  • Restriction mapping combines enzymatic digestion and gel analysis to confirm plasmid structures.

What is the simplest way to draw a plasmid map?

Draw a circle to represent the plasmid. Place key elements like resistance genes, origins of replication, and multiple cloning sites around the circle. This helps visualize the plasmid structure clearly.

Which online tool helps find restriction sites from a plasmid sequence?

NEBcutter (http://nc2.neb.com/NEBcutter2/) lets you upload your plasmid sequence and identifies restriction enzyme cut sites. It’s a fast way to analyze sequences without installing software.

Can I try plasmid mapping software for free before buying?

Yes. SnapGene offers a free trial for one month. You can also use ApE, which is a free plasmid editor. These tools help you simulate digests and design maps before committing.

What software is recommended for advanced plasmid mapping on MacOS?

MacVector is a paid application preferred for Mac users. It includes many features and offers lab licenses, making it useful if you map plasmids frequently.

Where can I find detailed guides about plasmid mapping and DNA construction?

Addgene’s website provides tutorials and explanations about plasmids and mapping techniques. It’s a good resource for beginners and advanced users alike.
