Are the Overhangs in Sticky Ends Produced by Restriction Enzymes Always 5’?
No, the overhangs in sticky ends produced by restriction enzymes are not always 5’ overhangs. They can be either 5’ or 3’ overhangs, depending on the enzyme. For example, the enzyme KpnI generates 3’ overhangs rather than 5’.
Understanding Sticky Ends and Overhangs

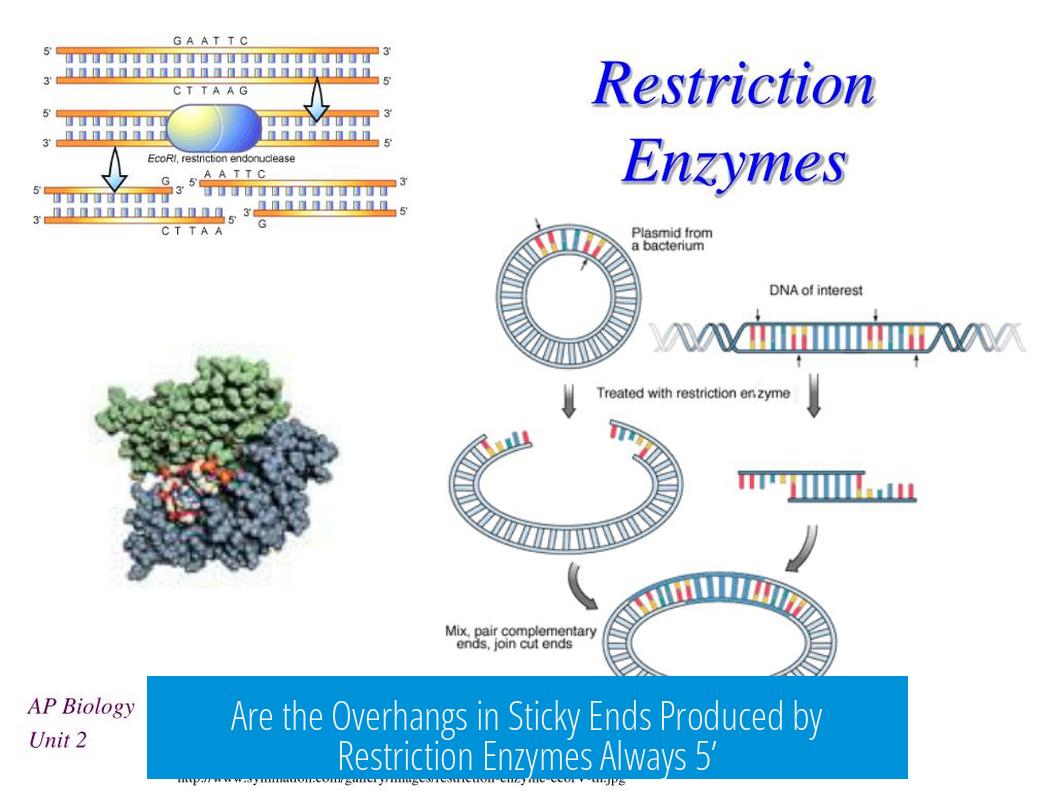

Restriction enzymes cut double-stranded DNA at specific sequences. This cleavage can produce “sticky ends” with single-stranded overhangs. These overhangs help DNA fragments base pair selectively during cloning and molecular biology techniques.
Sticky ends have either 5’ or 3’ overhangs. A 5’ overhang means the single-stranded extension is at the 5’ end of the DNA strand. Conversely, a 3’ overhang means the extension is at the 3’ end.
Types of Overhangs
- 5′ Overhangs: The enzyme cuts in a way that leaves single-stranded nucleotides on the 5’ end. Examples include EcoRI.
- 3′ Overhangs: The enzyme leaves single-stranded nucleotides on the 3’ end. KpnI is a key example of an enzyme that produces 3’ overhangs.

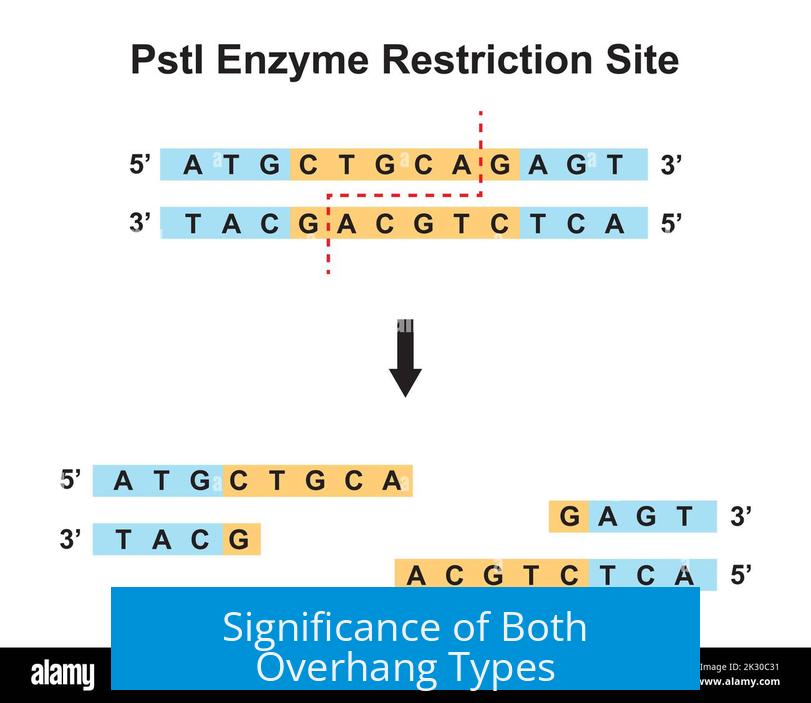

Significance of Both Overhang Types
Both overhang types serve similar purposes in molecular cloning. However, knowing the type helps design compatible ends for ligation and ensures correct DNA fragment assembly.
It is easy to assume all sticky ends are 5’ overhangs when focusing only on one DNA strand. But remembering the antiparallel nature of DNA clarifies the presence of 3’ overhangs as well.
Additional Resources
For a comprehensive list of restriction enzymes and their overhang types, consult databases such as NEB Enzyme Finder.
Key Takeaways
- Sticky ends from restriction enzymes can have either 5’ or 3’ overhangs.
- KpnI is an example that produces 3’ overhang sticky ends.
- Knowledge of overhang type is crucial for DNA cloning and ligation strategies.
- The antiparallel nature of DNA facilitates both overhang orientations.
- Refer to enzyme databases for detailed overhang information.
Are the Overhangs in Sticky Ends Produced by Restriction Enzymes Always 5’?
The short answer is: no, overhangs in sticky ends produced by restriction enzymes are not always 5’ overhangs. In fact, they can be either 5’ or 3’ overhangs depending on the specific enzyme involved. Let’s dive deep and unpack this molecular mystery.
You might think all sticky ends behave the same—like puzzle pieces that only fit one way. But life in the molecular biology world is a bit more diverse. Sticky ends are created when restriction enzymes cut DNA in a staggered fashion, leaving short single-stranded overhangs. The thing is, those overhangs can hang out at either the 5’ end or the 3’ end of the DNA strand.
The Basic Terminology Refresher
First, here’s a quick refresher to keep us on the same page: DNA strands have directionality, owing to their backbone made of sugar and phosphate groups. Each strand has a 5’ (five prime) end and a 3’ (three prime) end. When restriction enzymes cut DNA, they can leave overhanging single strands protruding from either the 5’ end or the 3’ end, creating what we call 5’ or 3’ sticky ends.
Not All Sticky Ends Are Created Equal: The Distinction Between 5’ and 3’ Overhangs
Imagine you have two scissors—one always making a cut that leaves a 5’ overhang, the other leaves a 3’. Biochemically speaking, both “scissors” (restriction enzymes) exist in the molecular toolkit. A famous example: KpnI is an enzyme that produces 3’ overhangs. This means that when KpnI cleaves DNA, the single-stranded end left over extends from the 3’ end of the cut strand.
Here’s why it matters: recognizing whether an enzyme produces a 5’ or 3’ overhang is crucial when you’re planning molecular cloning experiments. If you’re trying to ligate two DNA fragments together, you’ll want compatible sticky ends—that is, complementary overhangs with matching polarity.
Why Does the Overhang Orientation Matter?
Consider you’re trying to assemble a jigsaw puzzle, but some pieces have tabs sticking out (5’ overhangs) and others have blanks (3’ overhangs). If the tabs don’t match the blanks properly, the puzzle won’t fit. Similarly, in DNA recombination or cloning, incompatible sticky ends due to different overhang polarities cannot properly anneal and ligate, stalling your experiment.
Plus, the polarity affects enzymatic processes: DNA polymerases and ligases interact differently with 5’ and 3’ ends. Having the correct overhang polarity influences these enzymes’ activity and success in ligation reactions.
Digging Into Real-World Examples

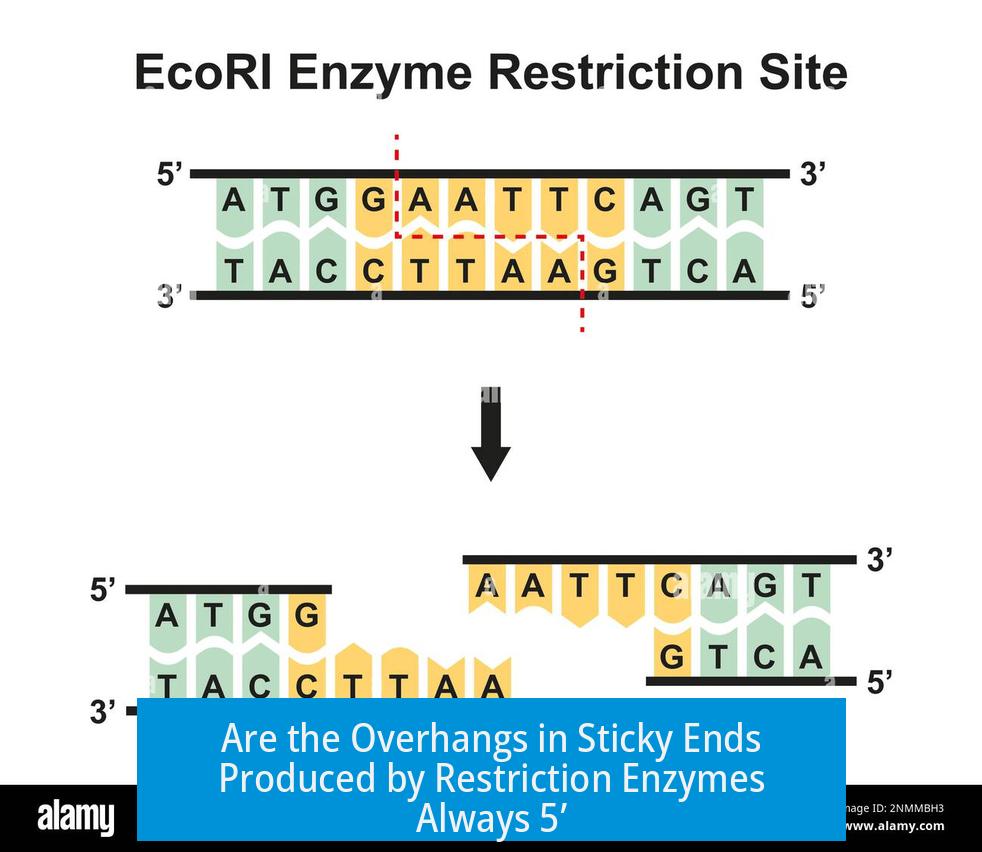

- EcoRI: This popular enzyme produces a 5’ overhang. After cutting, the DNA has an overhang extending from the 5’ end.
- KpnI: The classic 3’ overhang producer, leaving single-stranded DNA tails at the 3’ ends.
- BamHI: Another enzyme known for 5’ overhangs.
Some enzymes yield blunt ends with no overhangs, but those are less fun for sticky-end lovers.
Common Misconceptions
It’s easy to assume all sticky ends have 5’ overhangs, especially if your textbook or lab focuses heavily on classic enzymes like EcoRI. But ignoring 3’ overhangs could lead to misunderstandings or technical glitches. For instance, if you attempt to ligate a fragment with a 3’ overhang to one with a 5’ overhang, they will not anneal properly. This messes up cloning efforts.
Remember this: every cut creates two ends, and if one end holds a 5’ overhang on one strand, the complementary strand inherently has a 3’ overhang opposite it. However, when molecular biologists reference overhang type, they refer to the overhang on the sequence of interest after enzyme action, making the distinction important.
Practical Tips to Identify Overhang Types
How to know what overhang your restriction enzyme produces? Consult a resource like the New England Biolabs enzyme database. To avoid guesswork, make enzyme charts or tables with the overhang type listed, so you’re not stuck in the lab mid-reaction pondering “wait—5’ or 3’?”
If you’re designing cloning strategies, always verify the overhang directionality before ordering enzymes or DNA fragments. The wrong pairing wastes time and reagents—you don’t want your experiment to turn into a bench-side comedy of errors.
Advanced Insight: Biological Significance
Beyond practical cloning, the orientation of overhangs can influence natural biological processes. Restriction-modification systems in bacteria use these sticky ends to defend against invading DNA, like phages. The overhang polarity can impact how effectively the bacterial cell recognizes and degrades foreign DNA, giving clues about evolutionary adaptation.
Summary and Takeaway
Sticky ends from restriction enzyme cuts can be 5’ overhangs or 3’ overhangs. They are not exclusively 5’. Knowing the difference is critical for molecular biology applications like DNA cloning. Enzymes like EcoRI produce 5’ overhangs, while KpnI produces 3’ overhangs. This influences how DNA fragments anneal and ligase acts on them.
So, the next time you’re smiling over your gel electrophoresis results or prepping a cloning strategy, ask yourself: “Is this sticky end a 5’ or a 3’ overhang?” It’s a question that can save hours of frustration and give your experiment the best chance for success.
If you want to keep molecular biology straightforward, remember: sticky ends vary, and learning their quirks pays off—a lot.
Are sticky end overhangs produced by restriction enzymes always 5’?
No, sticky end overhangs can be either 5’ or 3’. It depends on the specific restriction enzyme cutting the DNA.
Can you give an example of an enzyme that produces 3’ overhangs?
KpnI is a common example of a restriction enzyme that generates 3’ overhangs instead of 5’ overhangs.
Why do 3’ overhangs occur in sticky ends?
Each strand is cut at different points. If one strand leaves a 5’ overhang, the complementary strand will have a 3’ overhang, depending on the enzyme’s cleavage site.
Is there a way to identify whether a restriction enzyme produces 5’ or 3’ overhangs?
You can check enzyme databases like NEB’s enzyme finder to see the type of overhang each restriction enzyme produces.
Do all sticky ends from restriction enzymes form overhangs?
Not all. Some enzymes create blunt ends without overhangs. Sticky ends specifically have single-stranded overhangs either on the 5’ or 3’ end.
