UHPLC Versus HPLC Cost and Advantages

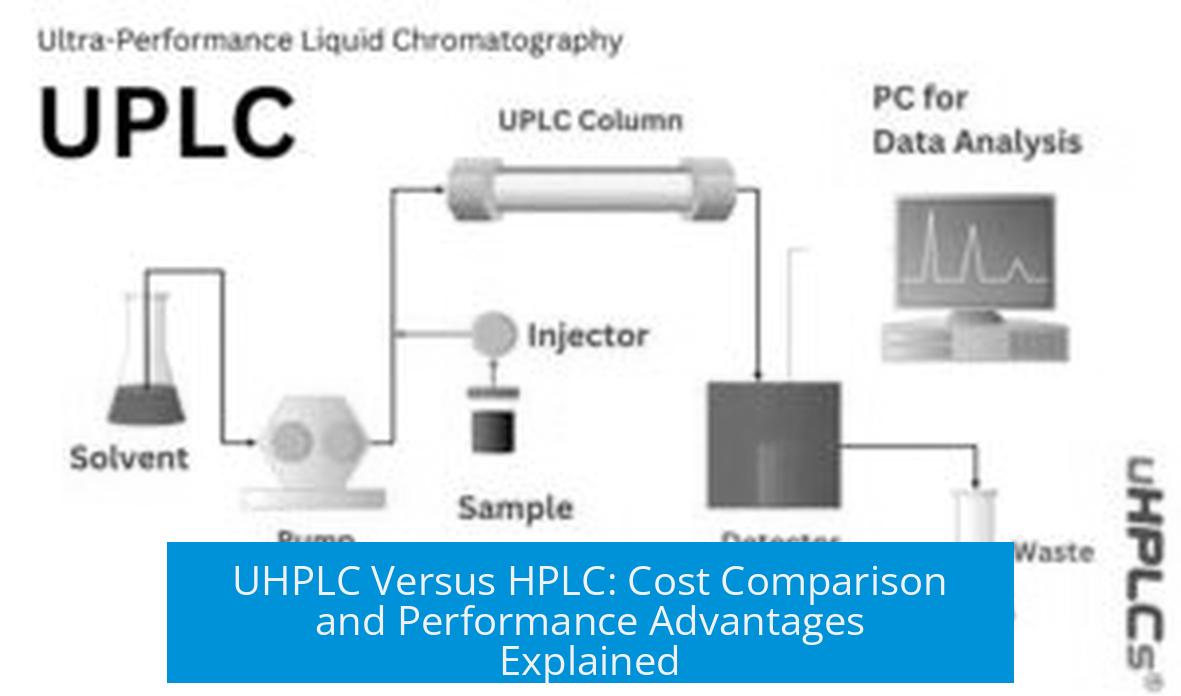

Ultra High-Performance Liquid Chromatography (UHPLC) differs from High-Performance Liquid Chromatography (HPLC) primarily in particle size and operating pressure, offering faster analyses and better resolution at higher initial costs. Both systems use similar hardware—a pump, packed column, and detector—but UHPLC employs smaller particles and stronger pumps to achieve improved performance.
System Similarities and Core Differences

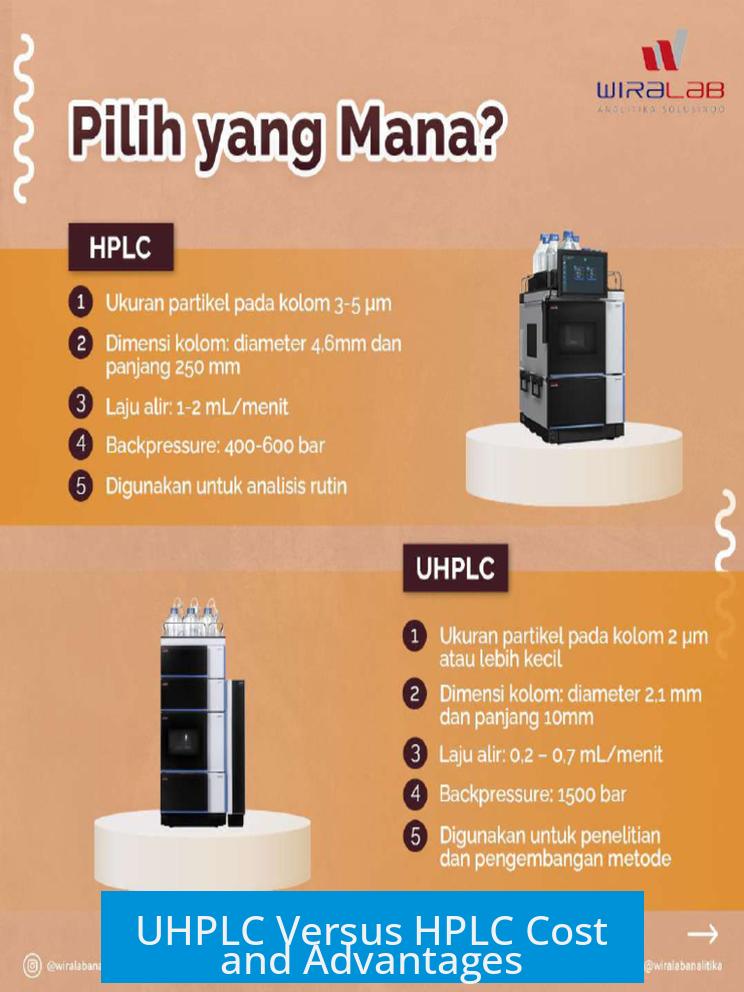

At the fundamental level, UHPLC and HPLC systems share the same operational principle. Each contains a solvent pump, a column filled with stationary phase particles, and a detector. The key difference lies in the stationary phase particle size. Traditional HPLC typically uses larger particles (3-5 μm), while UHPLC operates with sub-2 μm particles or modern core-shell particles. This reduction in particle size enables higher efficiency and faster separations.
Smaller particles reduce plate height (HETP), improving column efficiency and resolution. However, the pressure needed to push solvent through the column increases sharply—the pressure rises approximately with the inverse square of the particle diameter. Operating sub-2 μm particles pushes pressure requirements above 1000 bar, requiring UHPLC systems to use stronger pumps designed for this range, compared to conventional HPLC pumps operating near 200 bar.
Impact of Particle Types on Performance
Two main particle types dominate UHPLC technology: fully porous sub-2 μm particles and core-shell (superficially porous) particles.
- Sub-2 Micron Fully Porous Particles: Require pumps capable of about 1000-1200 bar. Their small size allows fast flow rates, suitable for high linear velocity separations.
- Core-shell Particles: Consist of a solid non-porous core covered by a porous shell approximately 0.35-0.5 μm thick. They pack densely, reducing eddy diffusion and allowing high efficiency at lower pressures (around 400 bar).
Core-shell particles achieve lower HETP at their optimal flow rate without demanding very high pressures. This property makes them attractive in settings where lower operational pressure is desired without sacrificing performance.
Performance Trade-offs
The choice between sub-2 μm particles and core-shell particles depends on the intended application and time constraints.
- Sub-2 μm particles perform better at high linear velocities, ideal when speed is a priority.
- Core-shell particles excel near their optimal linear velocity, providing very sharp, high-efficiency separations at more moderate pressures.
Column inner diameter also influences performance. A 2.1 mm column packed with sub-2 μm particles can deliver similar plate counts and sample loading capacity as a 4.6 mm core-shell column when operated at the same flow rate. Larger bore columns increase sample loading and sensitivity, useful for some analytical needs.
Cost and Equipment Requirements
UHPLC systems have a higher initial cost primarily due to the need for pumps and components able to withstand pressures above 1000 bar. Traditional HPLC pumps typically max out around 200 bar and are insufficient for sub-2 μm particle columns.
Using core-shell particles can reduce pump pressure requirements to approximately 400 bar, allowing some UHPLC separations to run on upgraded high-pressure HPLC systems. This offers a cost advantage for laboratories upgrading incrementally from conventional HPLC to higher-performance methods.
However, operating near pump pressure limits requires ensuring system robustness and routine maintenance to prevent failures.
Productivity and Operational Advantages
UHPLC systems offer several practical advantages that can justify the initial investment:
- Reduced Run Times: UHPLC enables very fast analyses by scaling down longer HPLC methods into minutes without loss of resolution.
- Increased Sensitivity and Resolution: Smaller particles and optimized columns sharpen peaks and improve separation selectivity.
- Lower Solvent Consumption: Shorter runs require less mobile phase, reducing costs and environmental impact.
- Ease of Integrating with Mass Spectrometry: Modern UHPLC systems interface readily with mass spectrometers, enhancing analytical capabilities.
- Method Transferability: Many UHPLC platforms include software to convert existing HPLC methods efficiently.
Faster turnaround times can increase laboratory productivity by factors up to ten, allowing more samples to be analyzed daily.
Drawbacks and Industry Trends
The major drawback of UHPLC lies in its upfront cost. Equipment and column costs are higher. However, the time savings and consumable reductions translate to operational savings and higher throughput.
Big pharmaceutical companies widely adopt UHPLC due to its advantages in speed and sensitivity. Companies such as Genentech, Novartis, and Bayer have shifted to UHPLC. Smaller or emerging labs with tighter budgets still rely on traditional HPLC systems.
Maintenance and Technical Considerations
Ease of maintenance varies. UHPLC requires specialized knowledge to manage high pressures and minimize extracolumn variance, the broadening of peaks outside the column. Modern UHPLC systems optimize detector data rates and fluidics to handle narrow peaks effectively.
In contrast, HPLC systems are somewhat more forgiving but may require more manual optimization to reach the same performance levels. Preference may depend on available expertise and willingness to invest in staff training.
Comparison Summary Table
| Aspect | UHPLC | HPLC |
|---|---|---|
| Particle Size | Sub-2 μm fully porous or core-shell | 3-5 μm fully porous |
| Operating Pressure | Up to 1200 bar (sub-2 μm); ~400 bar (core-shell) | Up to 200 bar |
| Run Time | Minutes (fast) | Tens of minutes to hours |
| Resolution and Sensitivity | Higher | Moderate |
| Cost | High upfront | Lower upfront |
| Solvent Usage | Lower | Higher |
| Maintenance Complexity | Higher (specialized) | Lower |
Key Takeaways
- UHPLC offers significantly faster runs and better resolution than traditional HPLC by utilizing smaller particles under higher pressure.
- Core-shell particles balance efficiency and pressure requirements, potentially lowering equipment costs compared to fully porous sub-2 μm particles.
- UHPLC systems reduce solvent usage and increase lab productivity, but have a higher initial cost.
- Traditional HPLC remains valuable for labs with limited budgets or simpler requirements.
- Large pharmaceutical companies favor UHPLC for its performance advantages despite the cost.
- Successful UHPLC operation requires maintenance expertise and optimized instrumentation to handle high pressures and narrow peaks.
What are the main cost differences between UHPLC and HPLC systems?
UHPLC requires stronger pumps and handles higher pressures, increasing initial costs. HPLC can run core-shell particles on lower pressure pumps (~400 bar), making it cheaper up front. UHPLC’s faster processing may save money over time.
How does particle size affect performance and pressure requirements in UHPLC and HPLC?
Sub-2 micron particles need pumps capable of 1000-1200 bar and enable higher flow rates. Core-shell particles work efficiently at lower pressure (~400 bar) and provide good performance at optimal velocities.
What productivity advantages does UHPLC offer over traditional HPLC?
UHPLC significantly reduces run times, sometimes by tenfold. It improves sensitivity and resolution, allowing labs to process more samples faster with less solvent consumption. This boosts overall lab efficiency.
Are the methods developed on HPLC transferable to UHPLC systems?
Yes, methods can be easily adapted from HPLC to UHPLC. Some UHPLC platforms include tools to aid method transfer, simplifying system upgrades without extensive redevelopments.
Why do large pharmaceutical companies prefer UHPLC despite its cost?
Big pharma values the faster analysis, higher resolution, and reduced solvent usage UHPLC offers. The initial expense is balanced by increased throughput and better data quality in high-demand environments.
